Product Info

DESCRIPTION

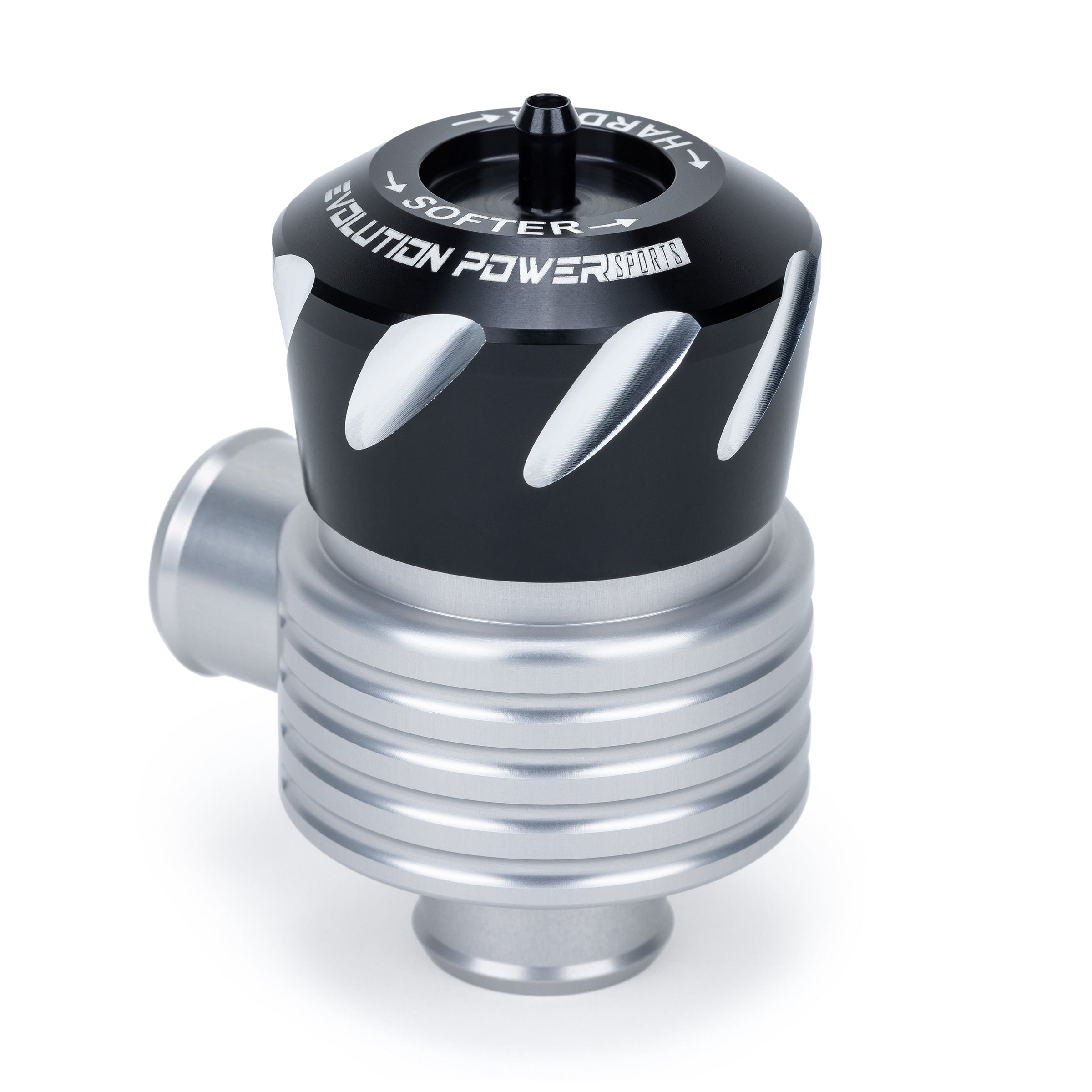

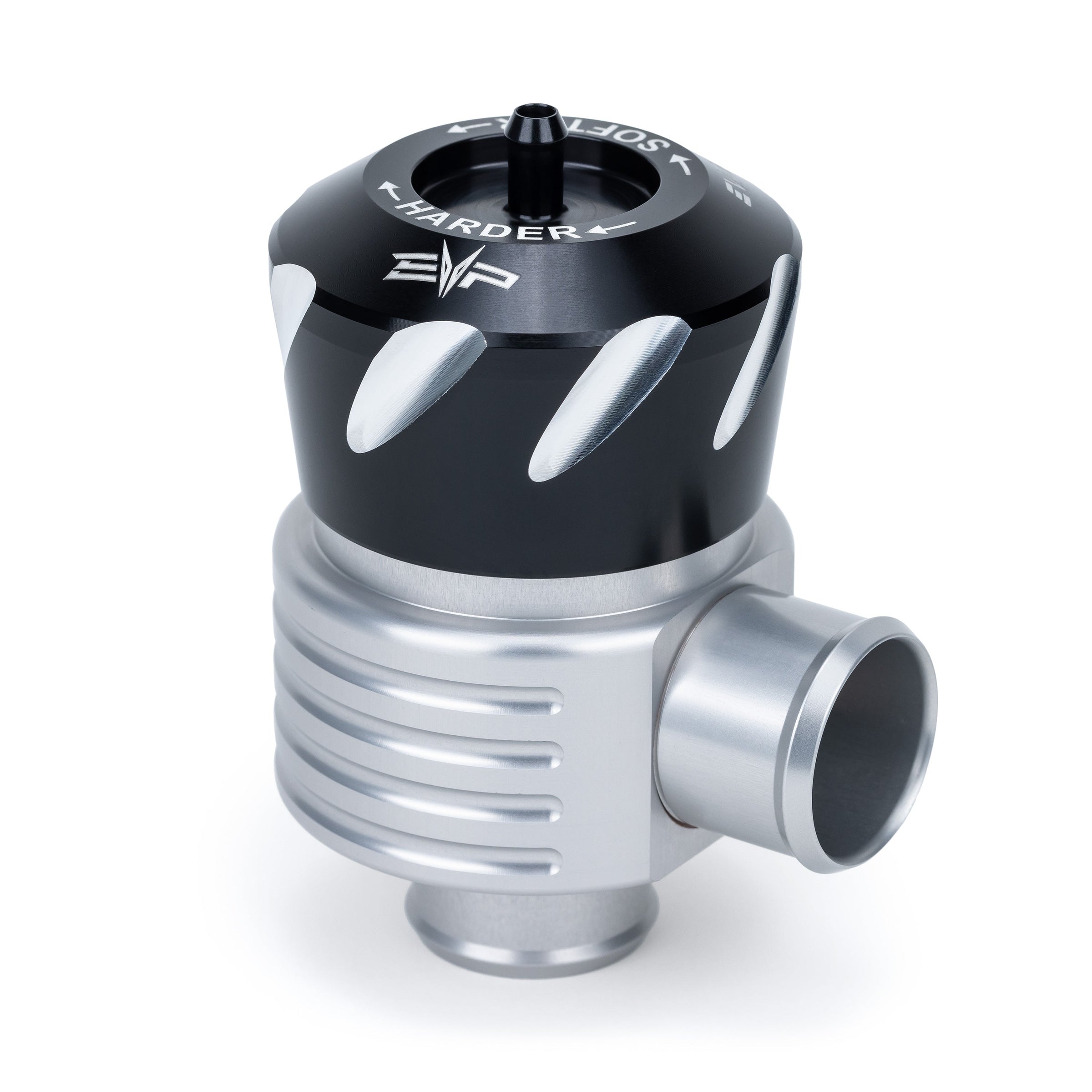

The Evolution Powersports Polaris RZR XP Turbo diverter valve is constructed of anodized billet aluminum and features very high temperature sealing o-rings. The OEM Polaris part is constructed of plastic and is a very low-quality part that is prone to sticking open, which will dump boost pressure back into the intake and cause a loss in power. The EVO BRV is a precision part that is designed for high performance vehicles (it has been tested to over 500hp) and is a direct replacement for the OEM valve. Many different spring rates have been tried to maximize the performance and fine tune the transition from where the valve is open/closed for smaller displacement turbo/supercharged vehicles.

• Tested to 500+ horsepower
• Direct replacement for the OEM Polaris plastic valve
• Prevent compressor surge which leads to loss in performance and throttle response when the throttle closes then reopens at speed
• Simple install
• The body, piston and cap are machined from billet aluminum
• The cap is anodized and re-machined for easy gripping for spring tension adjustments
• The piston and body are hard coated with impregnated Teflon anti friction matrix
• The design has 3 sealing O-rings for leak proof operation
• Does not have the "pshh" sound that some customers look to avoid


INSTRUCTIONS

XP Turbo & Pro XP Boost Recirculation Valve Kit (BRV)

RZR XP BRV Instructions
