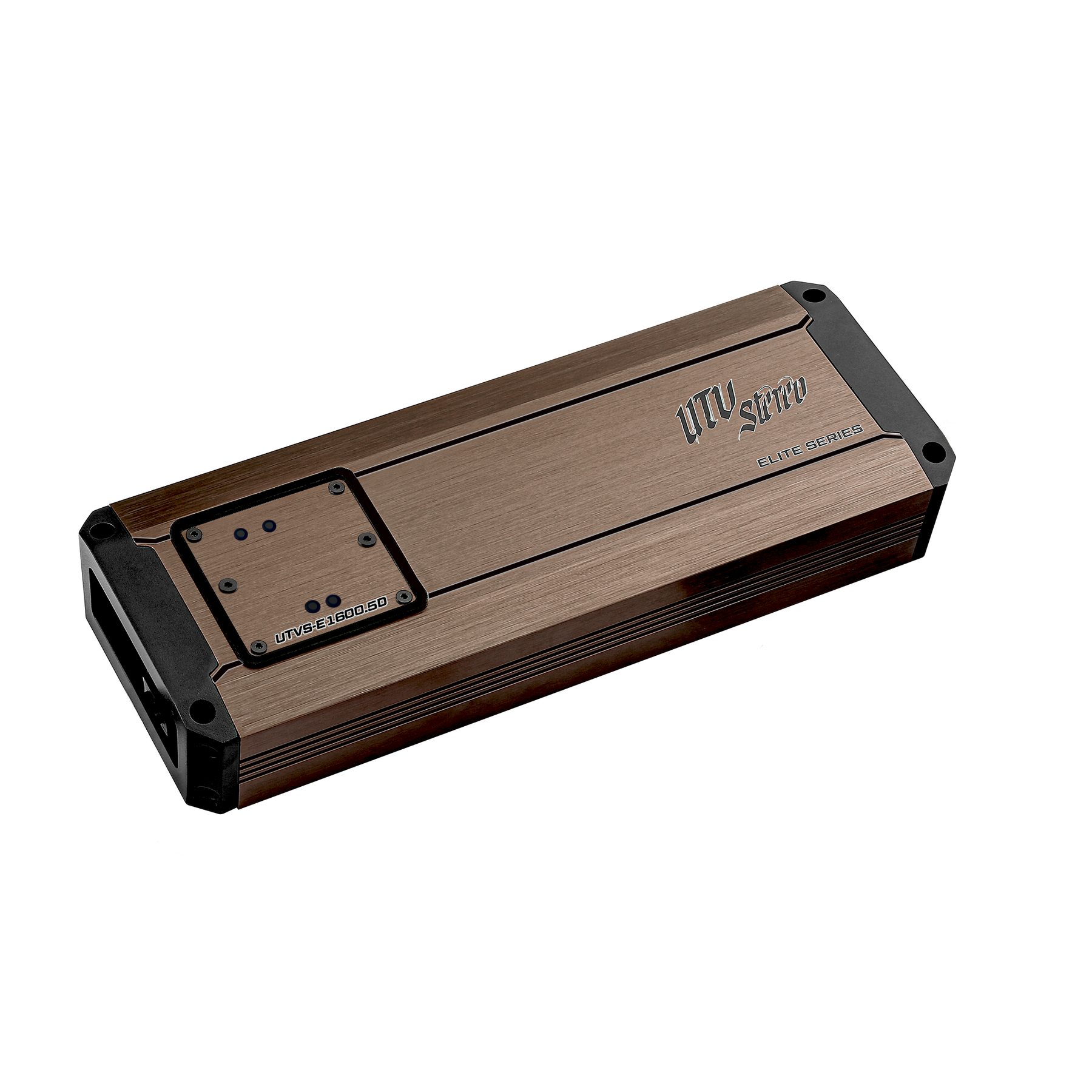

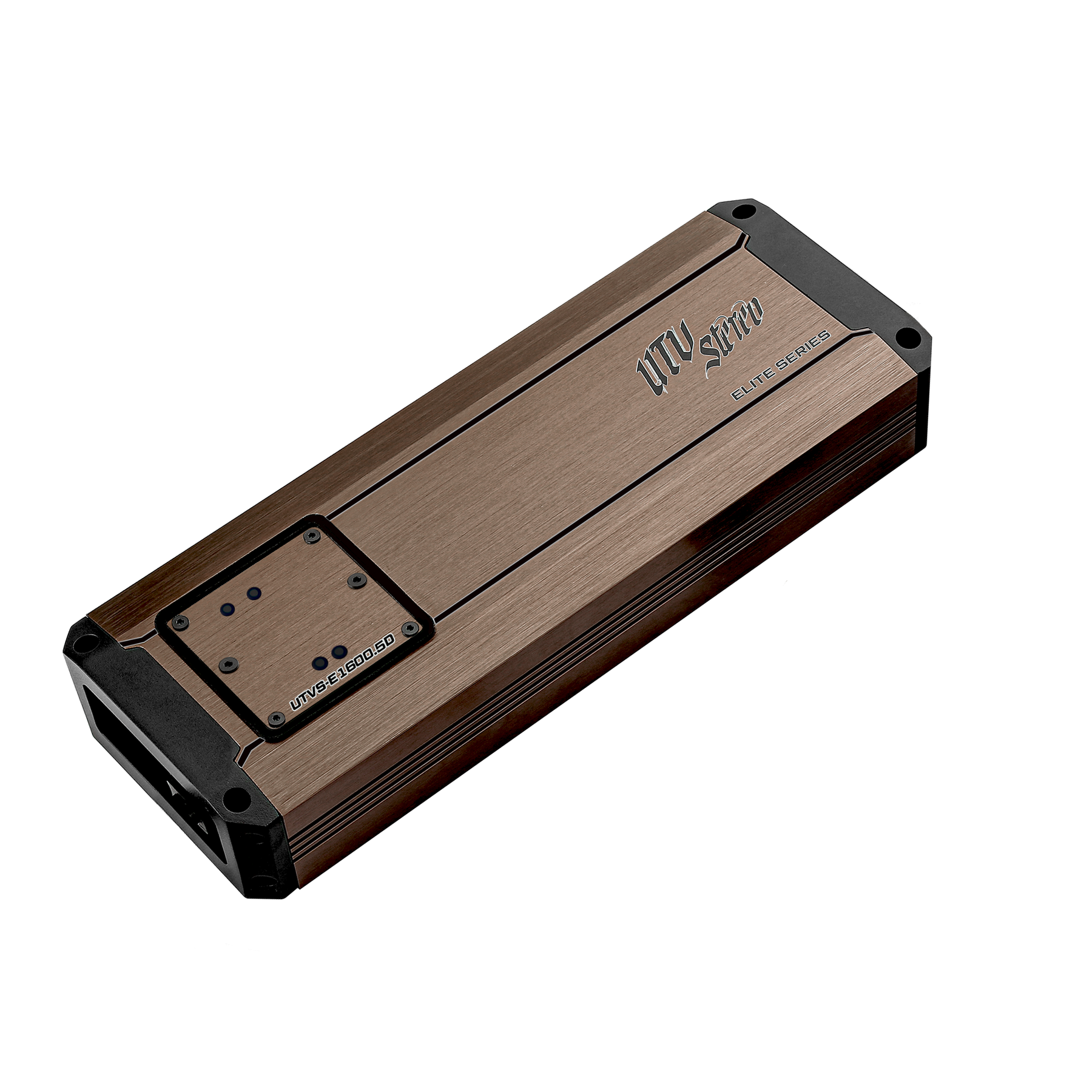

Designed for high-performance audio systems, these UTV Stereo "Elite Series" amplifiers are packed with plenty of power. They are built rugged to withstand the elements with an IP67 water-resistant rating, loaded with features, these "Elite Series" amps were designed to keep any enthusiast satisfied.

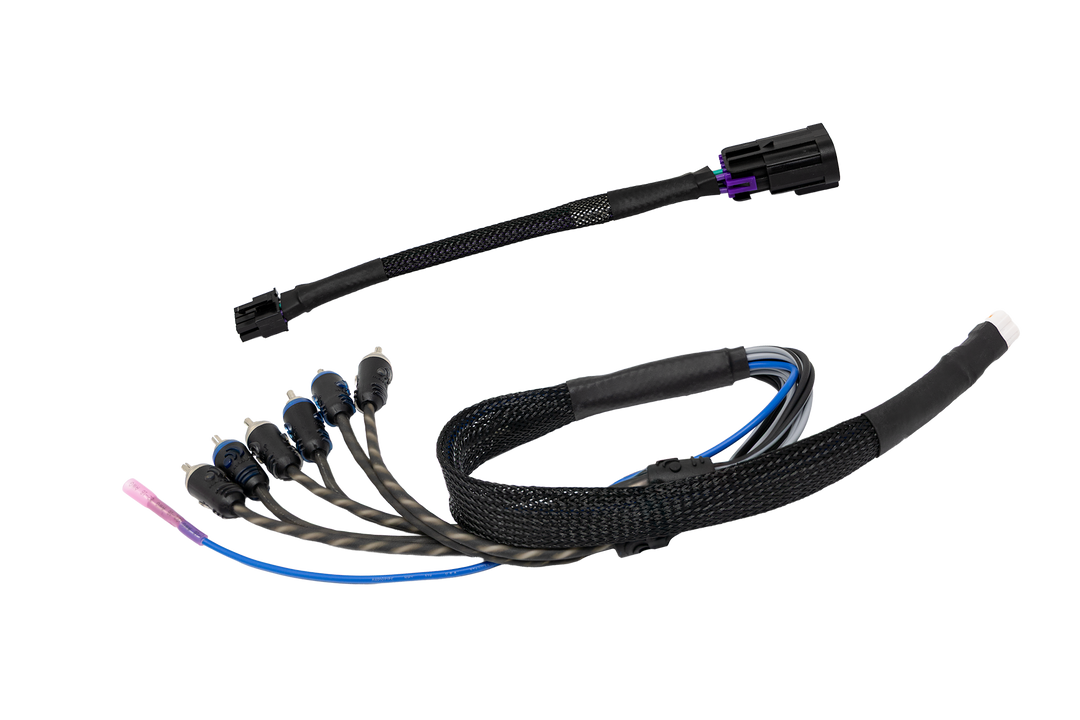

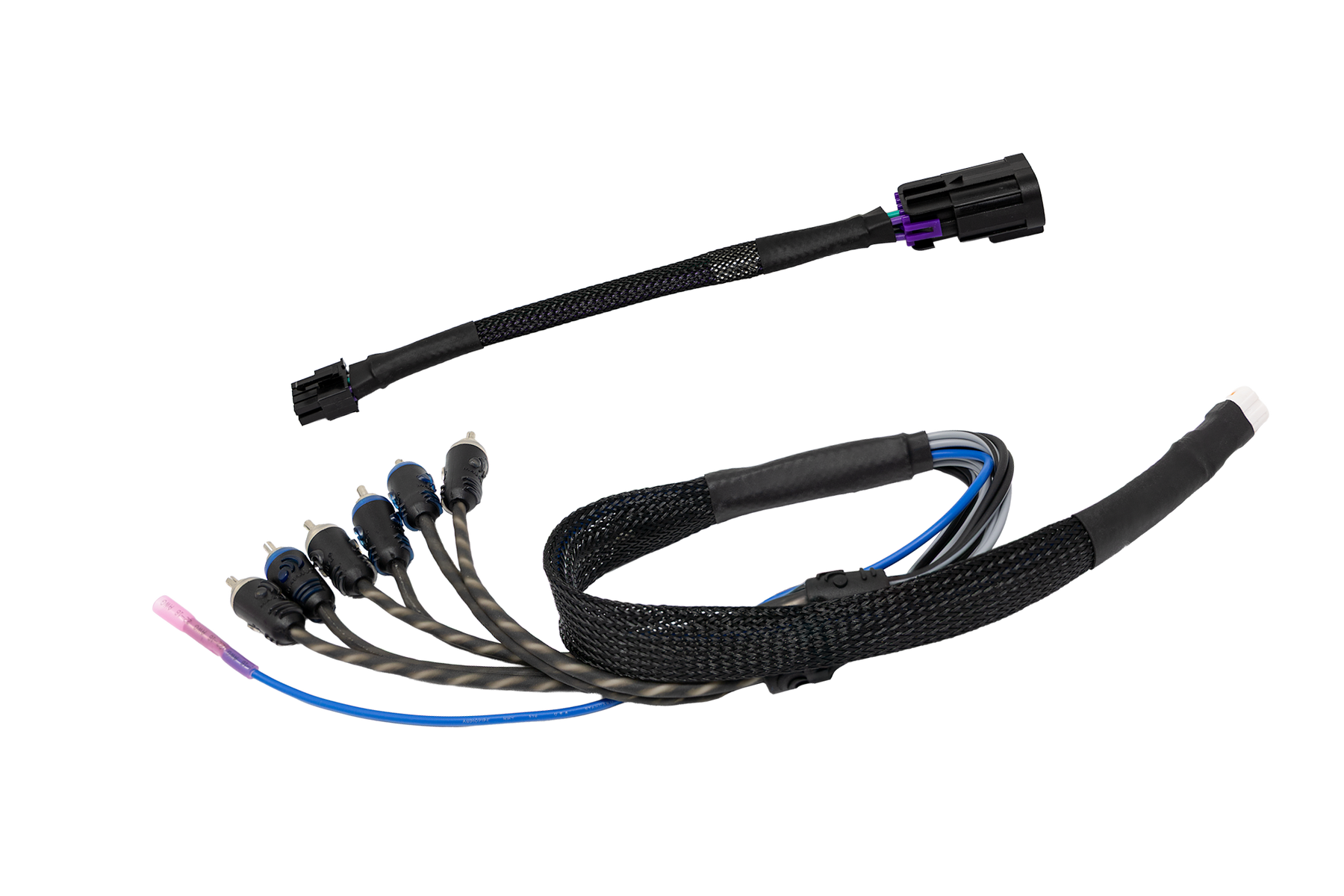

Integrates Seamlessly with Garmin Tread® using the UTV Stereo Garmin Tread® RCA Output kit
Features:
- Die-Cast Aluminum Chassis
- IP67 Rated Dustproof & Water-resistant
- IRS Full Range Class-D Technology for Efficiency & Performance

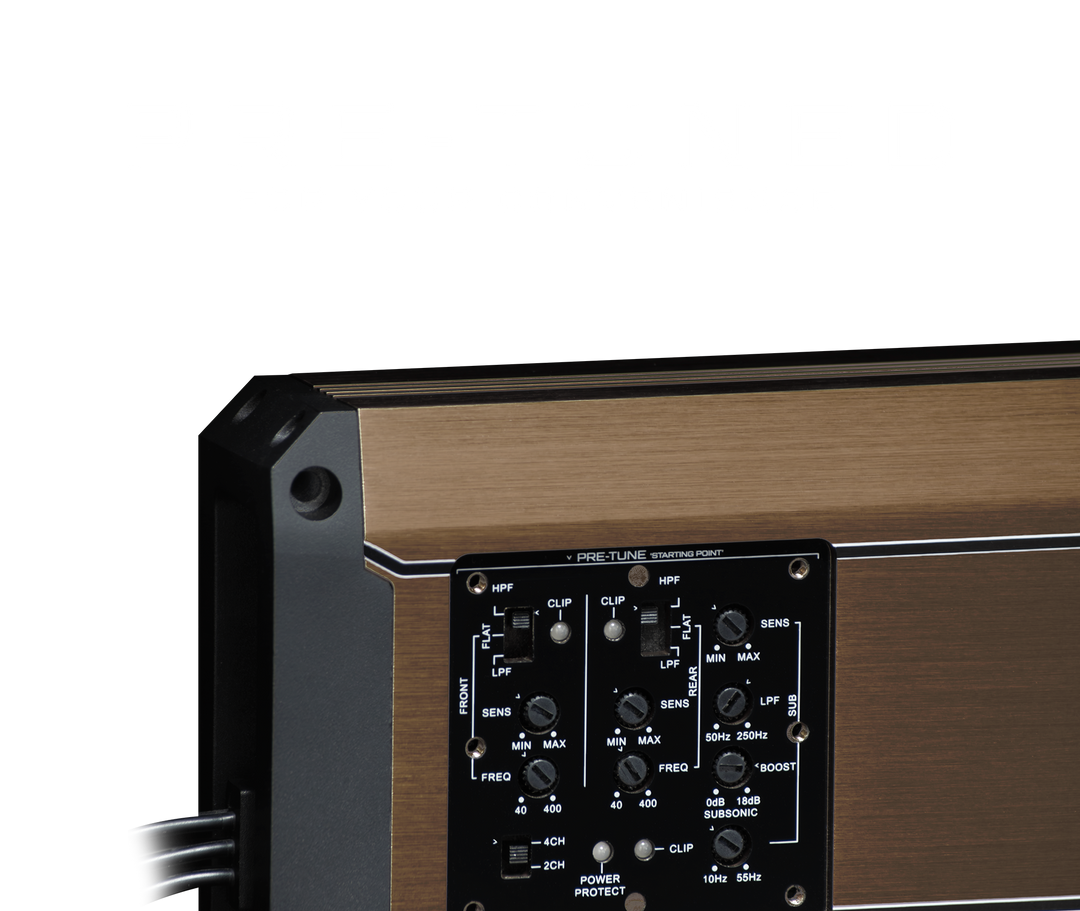

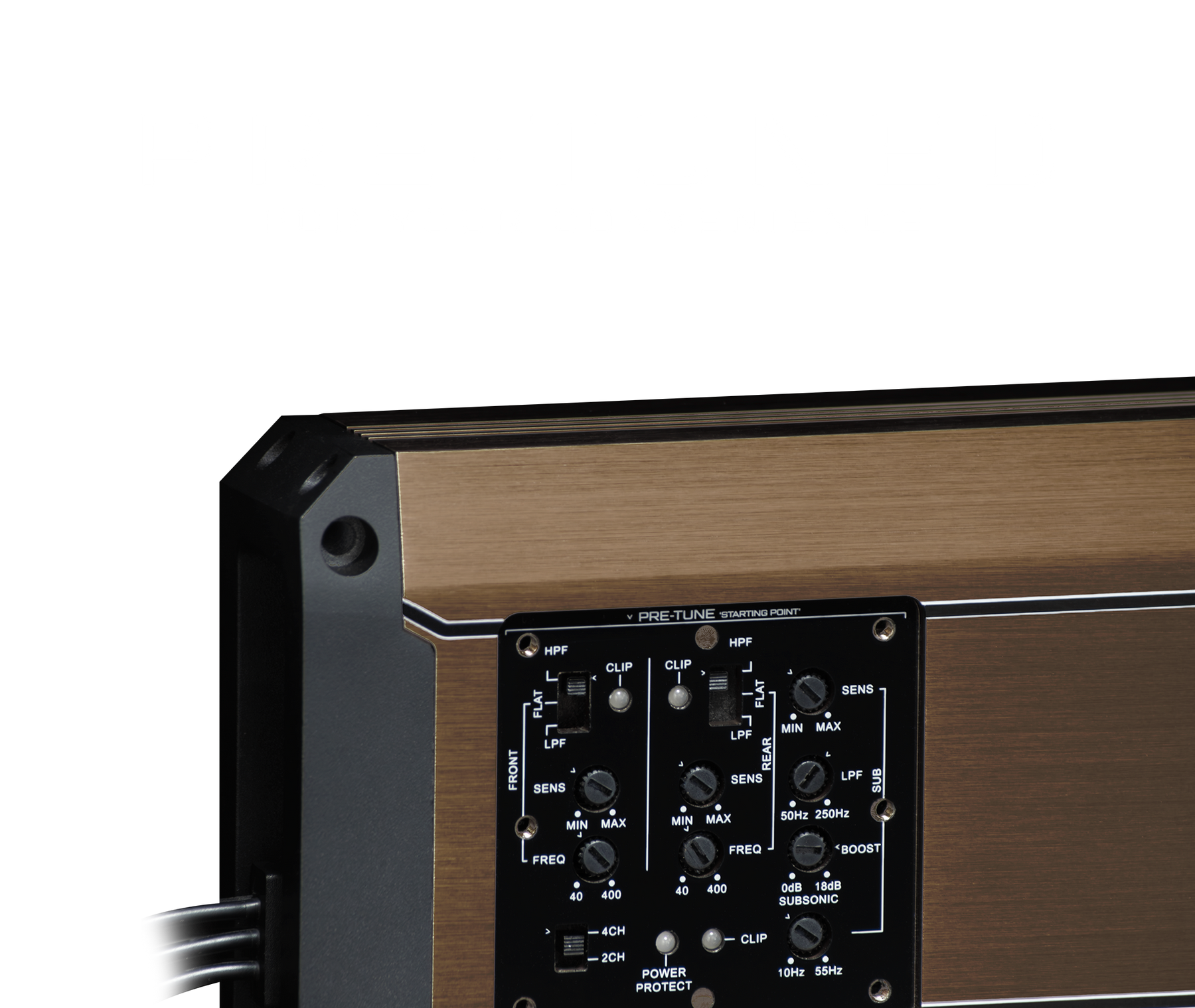

- Top Panel Tuning Control Access
- Ultra Compact Size for Easy Installation
- Surface Mount Component Technology
- Verified for Audio Precision Quality Control
- Stable & Reliable Four-Layer PCB Trace layout
- Power, Protection, and Clipping LED Indicators
- Short Circuit, Thermal, High/Low Voltage Protection
- Excellent Signal to Noise Ratio & FM Noise Rejection
Specifications:
- RMS Power Output at 2 Ohm: 200W x 4CH + 800W
- RMS Power Output at 4 Ohm: 125W x 4CH + 500W
- RMS Power Output at 4 Ohm Bridged: 400W X 2CH (F&R CH'S)
- Crossover Range: HPF: 40-400Hz (F&R CHs) LPF: 50-250Hz (SUB)
- Frequency Range: 20-20KHz / 20-250Hz
- Water resistant IP67 Certified
- Conformal Coated PCB Certified

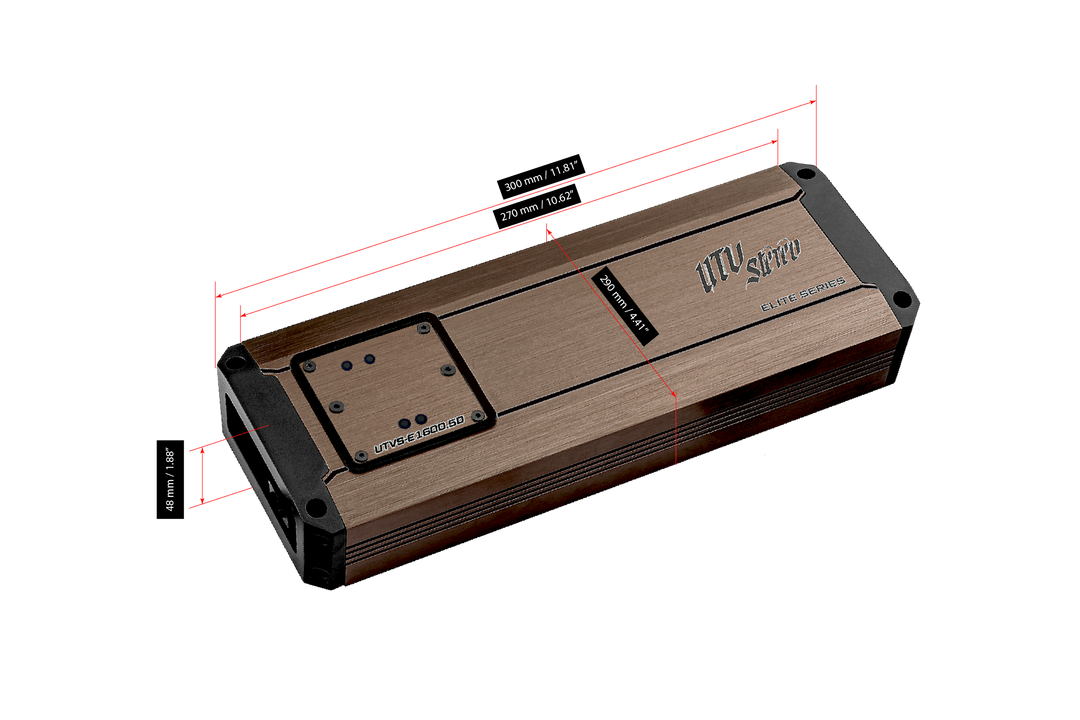

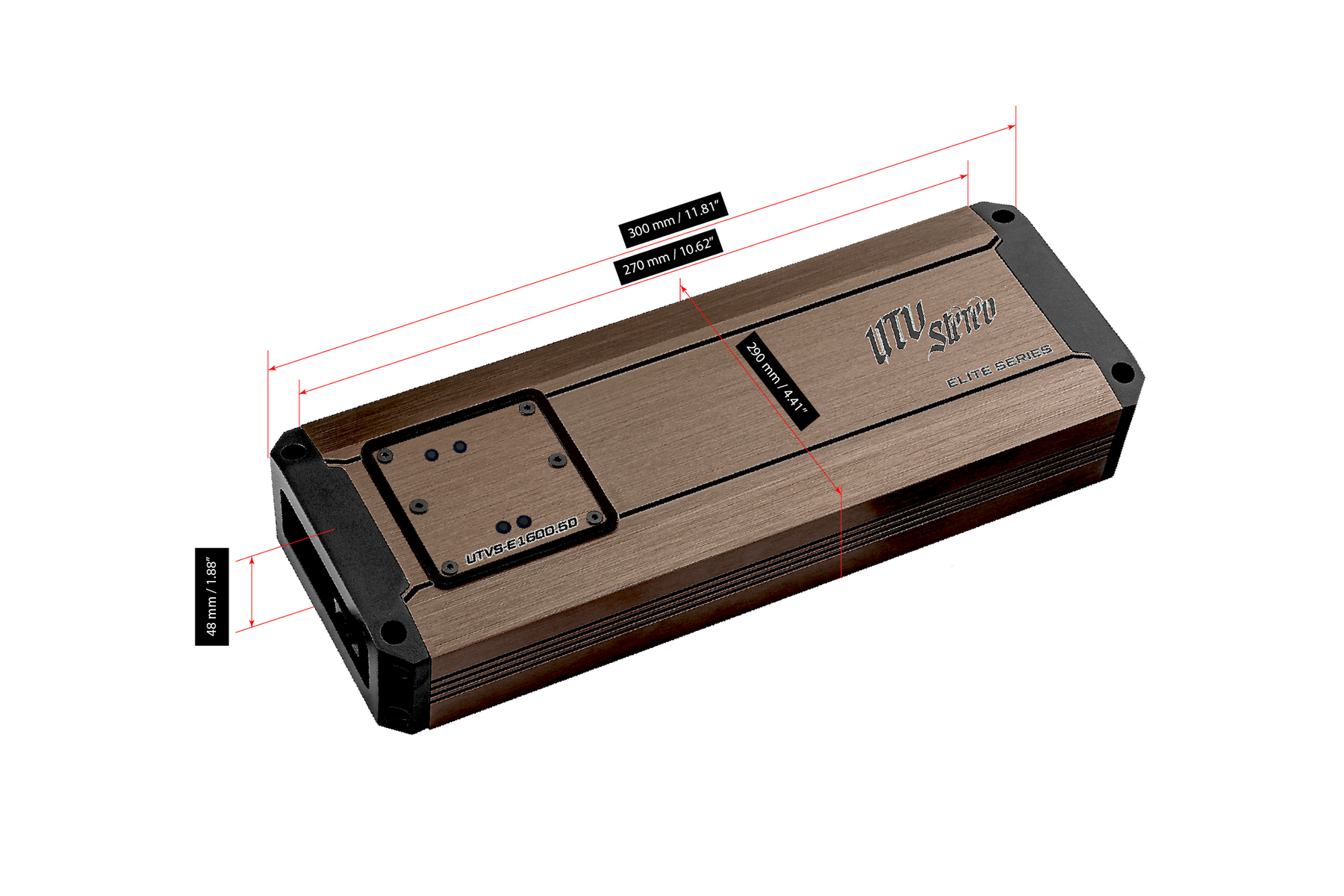

- Dimensions: 11.83” x 4.41” x 1.89”
