Dual Sheer Radius Rod Plate for Can Am Maverick X3 2017+

Regular price$86.00
/

  • Trail-Tested. Guaranteed.
  • Fast Nationwide Shipping
  • Secure checkout

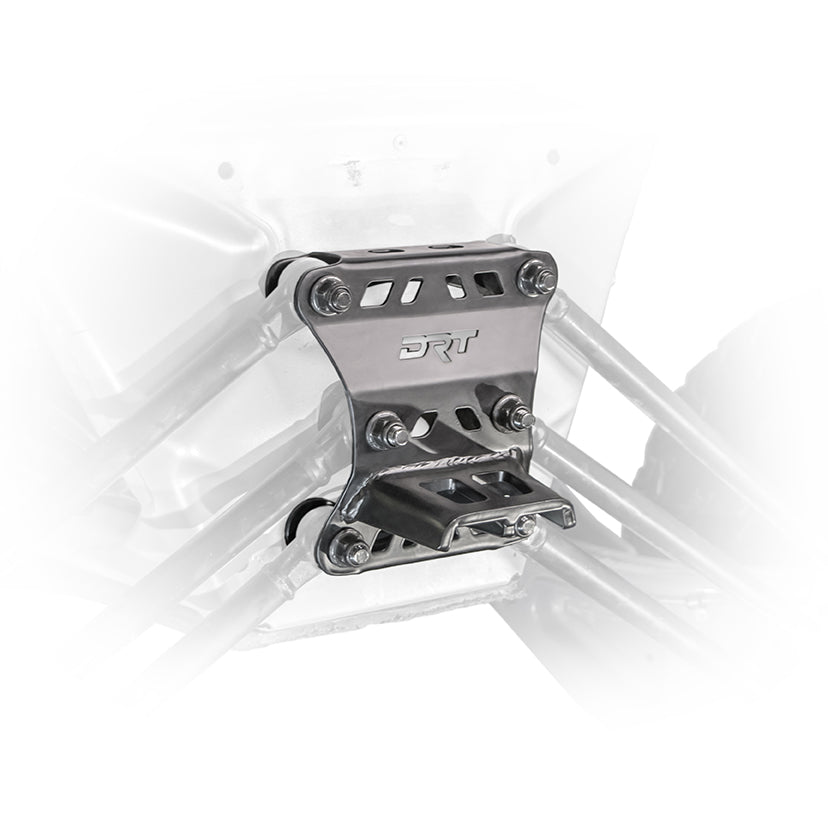

DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate

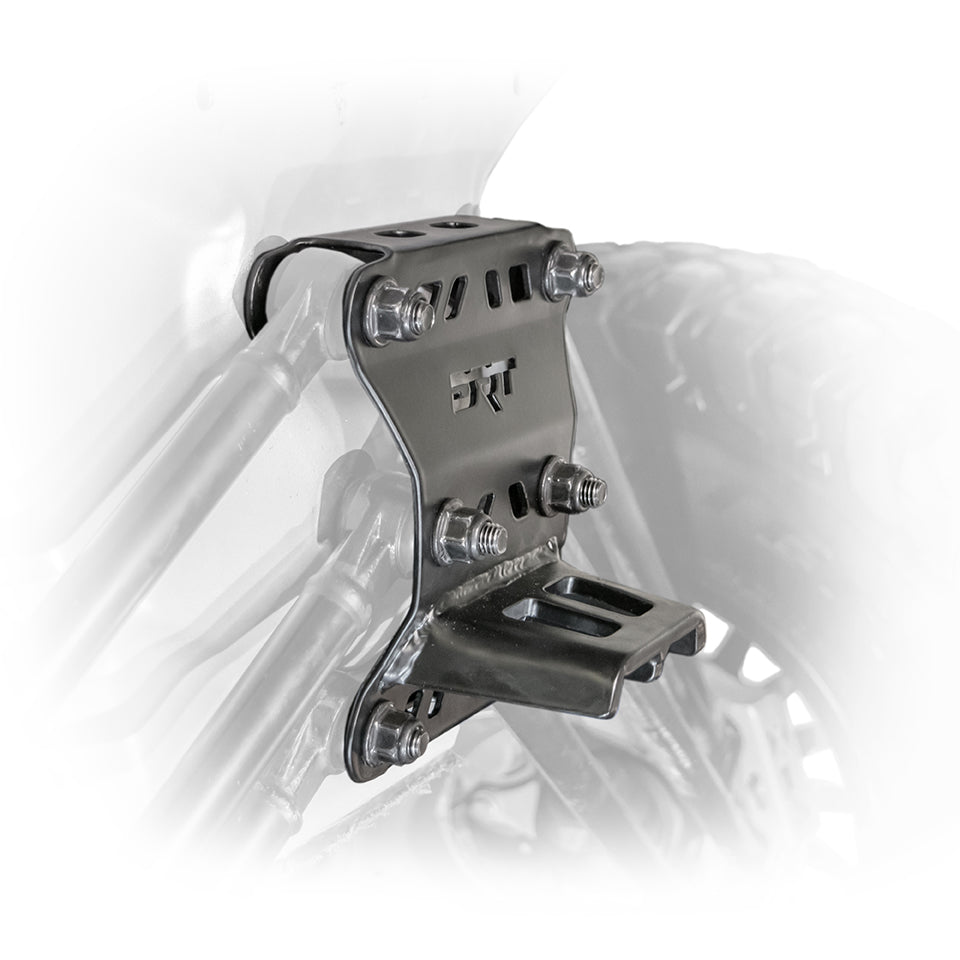

DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate Front side view

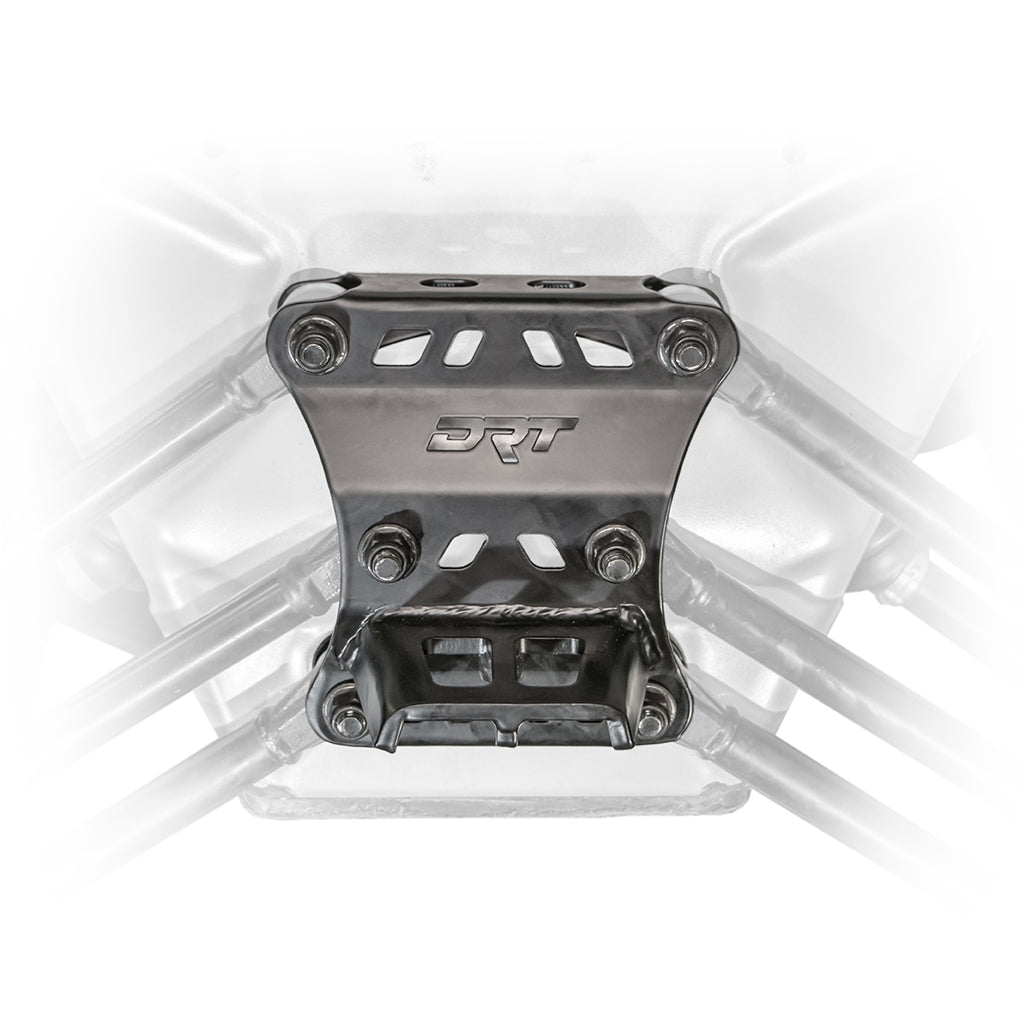

DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate Front view
DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate Front top view
DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate Full view
DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate Front view

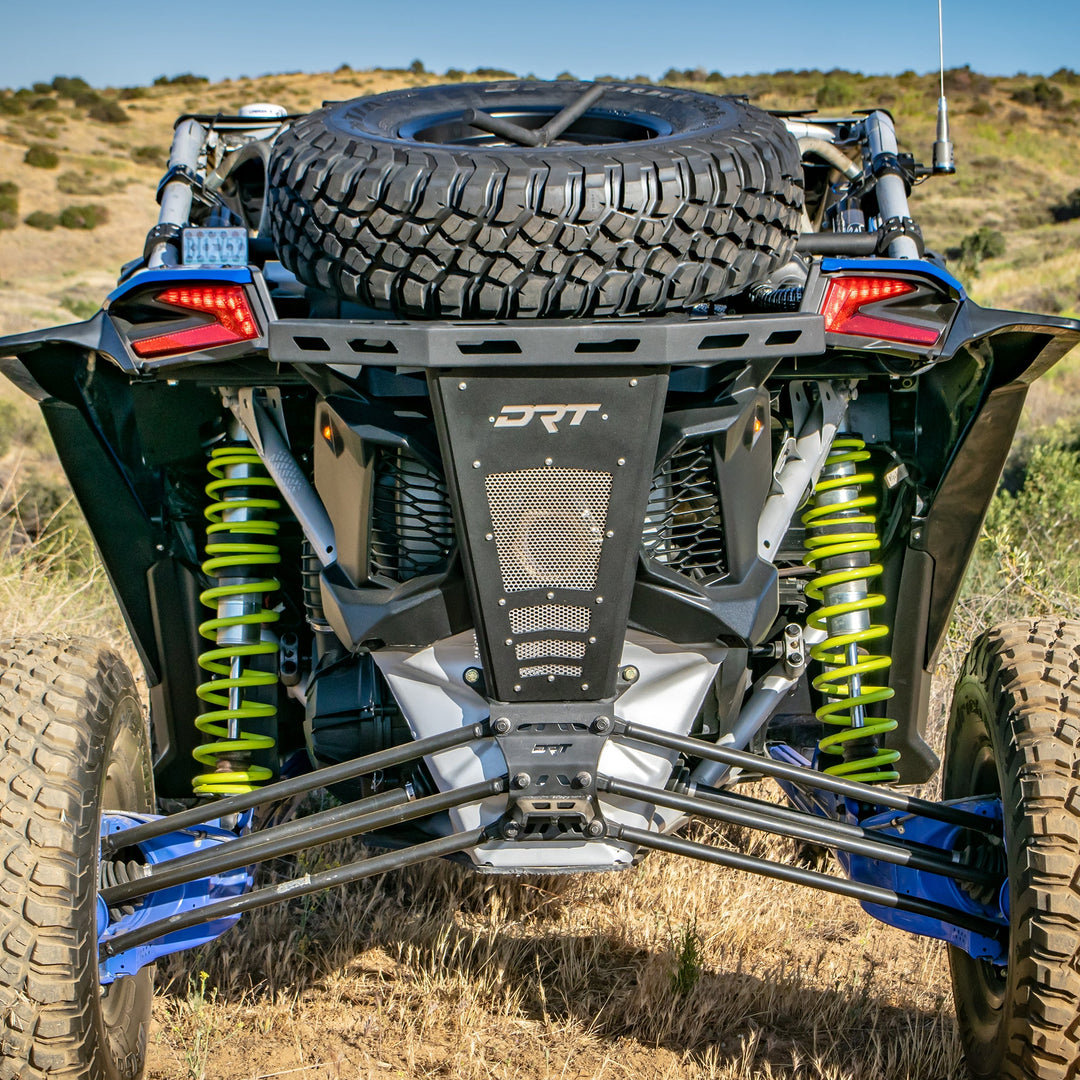

DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate Full rear view
DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate Rear view
DRT Can Am Maverick X3 2017+ Dual Sheer Radius Rod Plate Full rear view on a field

The DRT Motorsports Dual Sheer Radius Rod Plate is essential for any Can-Am Maverick X3 that gets used the way it was intended. The plate is made with tighter tolerances and thicker material than the factory radius rod plate. Most importantly, the CAX3RP1 converts all of the frame-side radius rod mounting hardware to double shear, which delivers a large strength gain for the rear suspension and prevents breaks at a common failure point.

Applications

  • 2017+ Can-Am Maverick X3, 2 and 4 door models

Features

  • Double shear mounting. Makes all radius rod frame mounting locations dual shear for a stronger rear end.
  • Tighter tolerances. Fits the frame more precisely than the factory radius rod plate.
  • Thicker material. More metal than stock at a known failure point.
  • Recovery ready. Extra thick, gusseted tow and tie-down point.
  • Durable finish. Powder-coated semi-gloss black.
  • No-drill bolt-on. Installs using the existing radius rod hardware locations.

Construction & Installation

The plate is cut from thicker material than the OEM part, held to tighter tolerances, and powder-coated semi-gloss black. A gusseted tow and tie-down point is built into the plate for recovery and trailering. It fits all 2017+ Maverick X3 models in 2 and 4 door configurations. Installation is bolt-on with no drilling required: the plate mounts at the factory radius rod locations and puts each rod end in double shear instead of the single-shear factory arrangement.

Product # CAX3RP1
Patent Pending
