DESCRIPTION

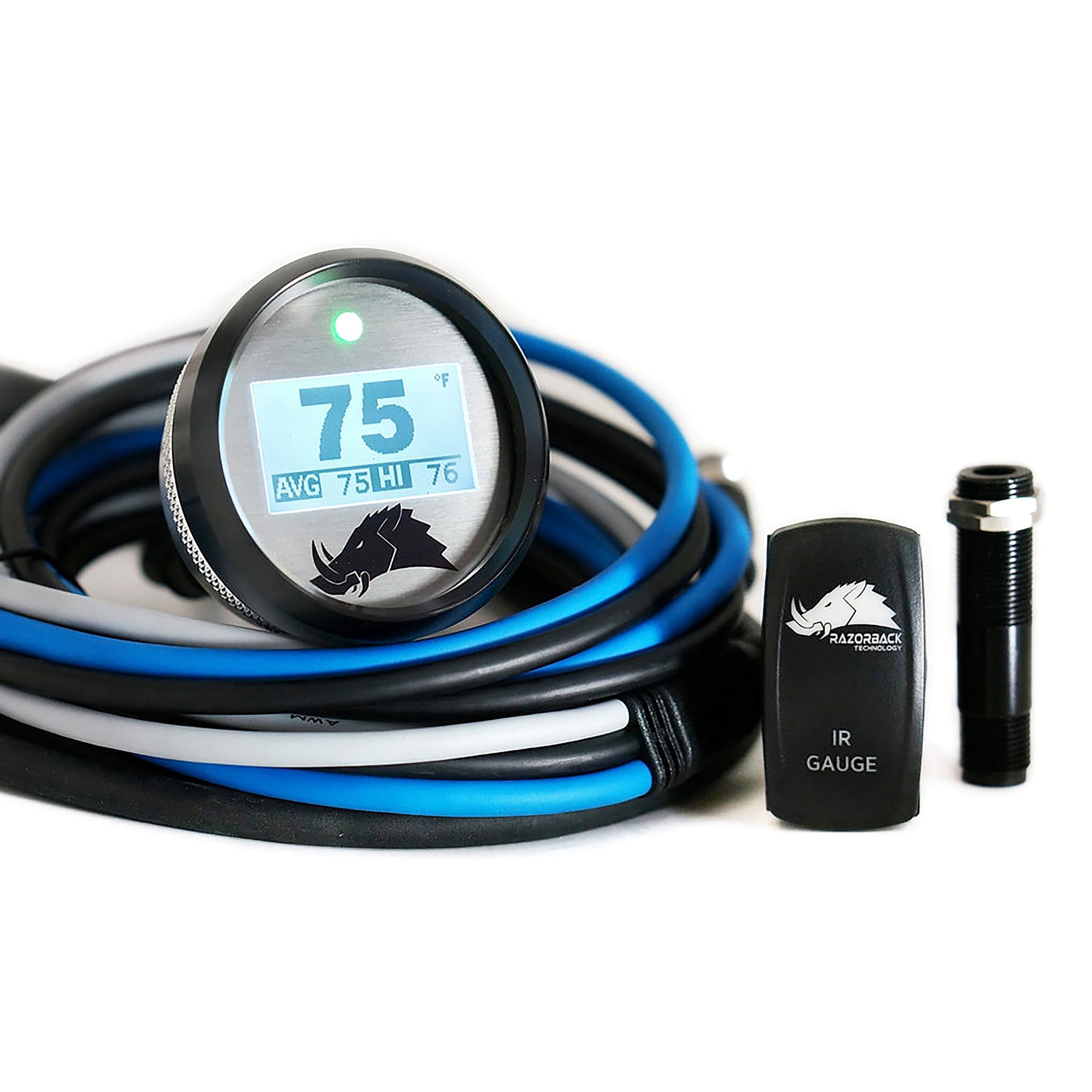

- Infrared sensors on the removable clutch cover aim directly at the cvt belt for real-time surface temperature readings.
- Real-time readings help avoid damaging temperatures and extend belt life.
- Display offers screen inversion or LED alerts when belt temperatures reach heat-damage levels.
- Temperature monitoring aids clutch tuning. Changes or misalignment, wrong weights, or a worn spring can increase belt heat and indicate clutch issues.
- Monitor belt condition by tracking how quickly belt temperature changes. The 3.1 Edition added Average and High Temperature tracking. An average rise of 40-50 F suggests considering replacement. A sudden 60-70 F spike often signals imminent belt failure.
Additional Information
Dimmable Operation:
- Press the rocker switch to increase brightness one level (e.g. from level 1 to level 2).
- Pressing from level 5 resets the dimmer back to level 1 (dimmest).
- The gauge retains the last brightness setting when powered off and returns to it when powered on.
Additional Features:

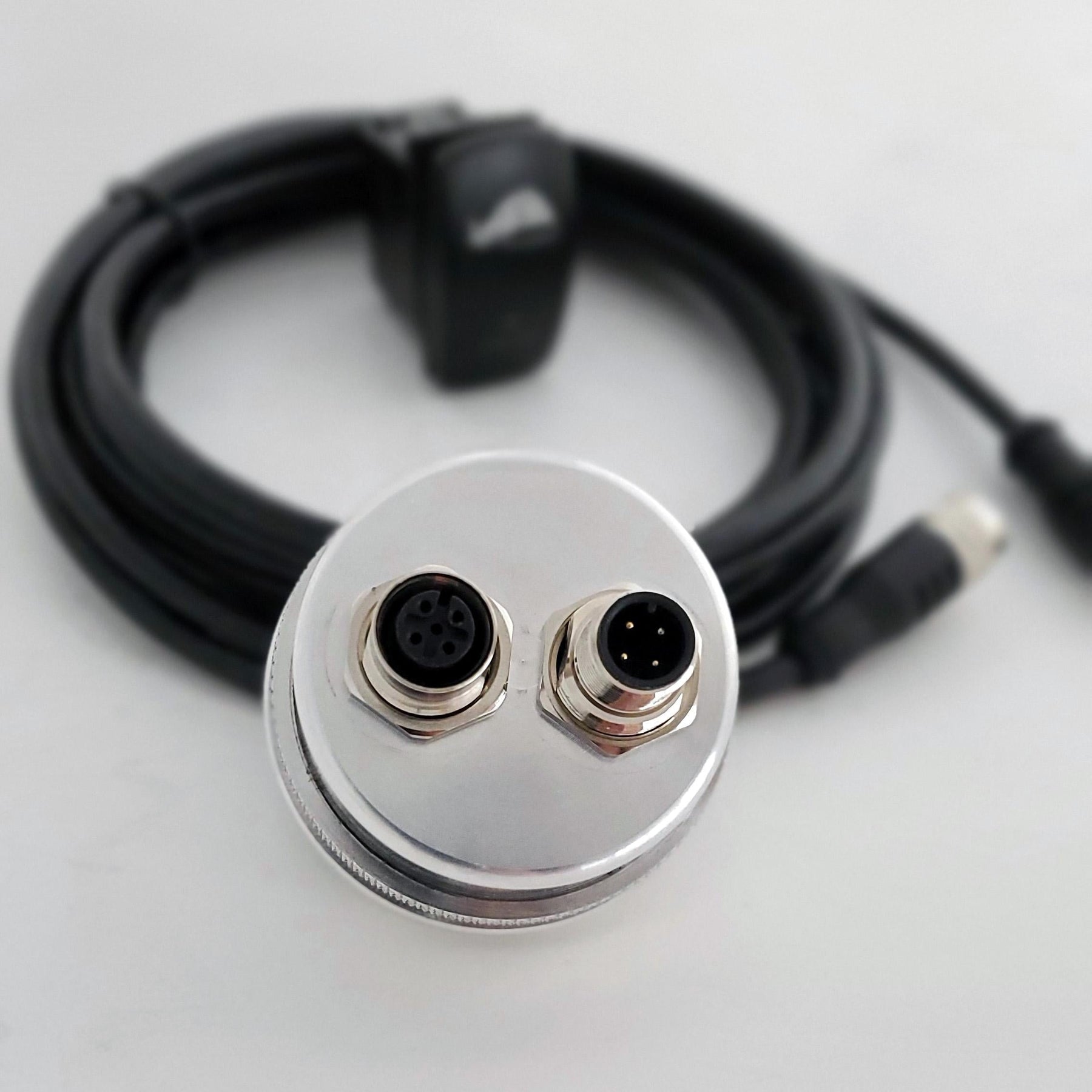

- Water protection: IP65 gauge; IP67 sensor and connection.
- Selectable Fahrenheit or Celsius display.
Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.
