DESCRIPTION

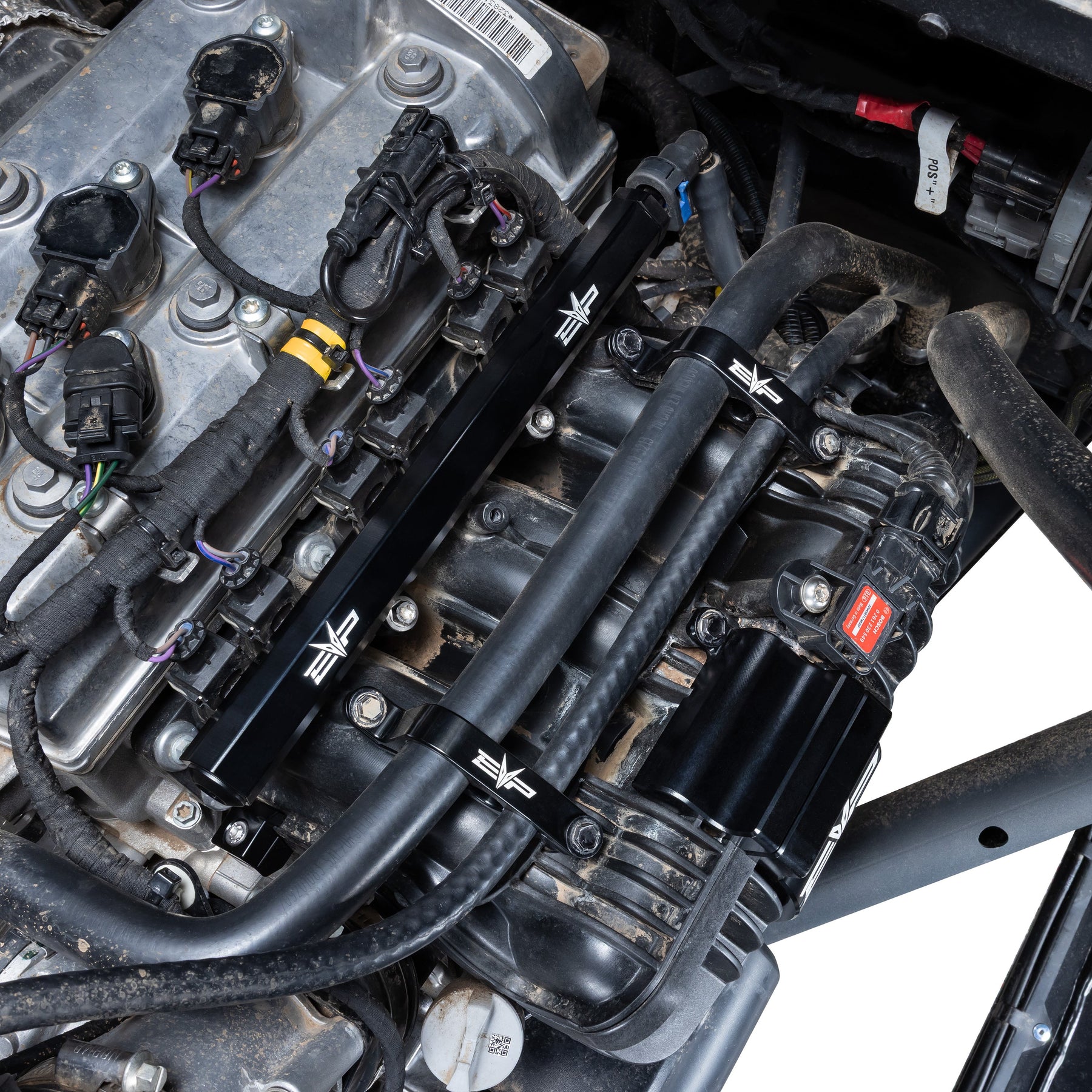

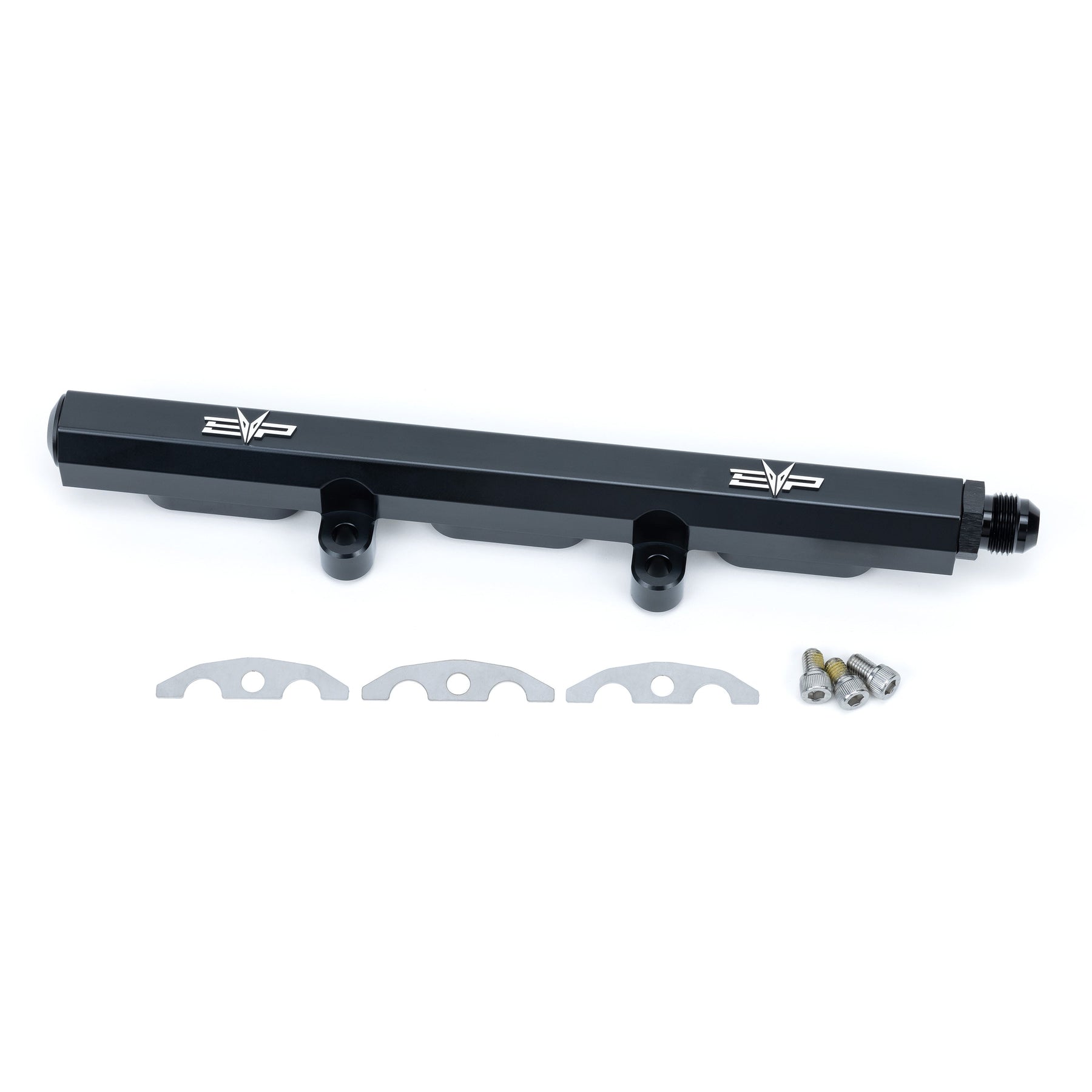

EVP improved several factory weak points for racing use. The kit replaces the plastic OEM fuel rail with a billet aluminum rail and aluminum ORB SAE fitting to reduce breakage risk. A Male 3/8 SAE ORB fitting is included and mates to the OEM fuel hose without modification. The rail thread is -8 and the opposite side is also -8, allowing use of up to -8 hose or a return-style fuel system. The billet rail is stronger than stock and provides about 30% more fuel volume.

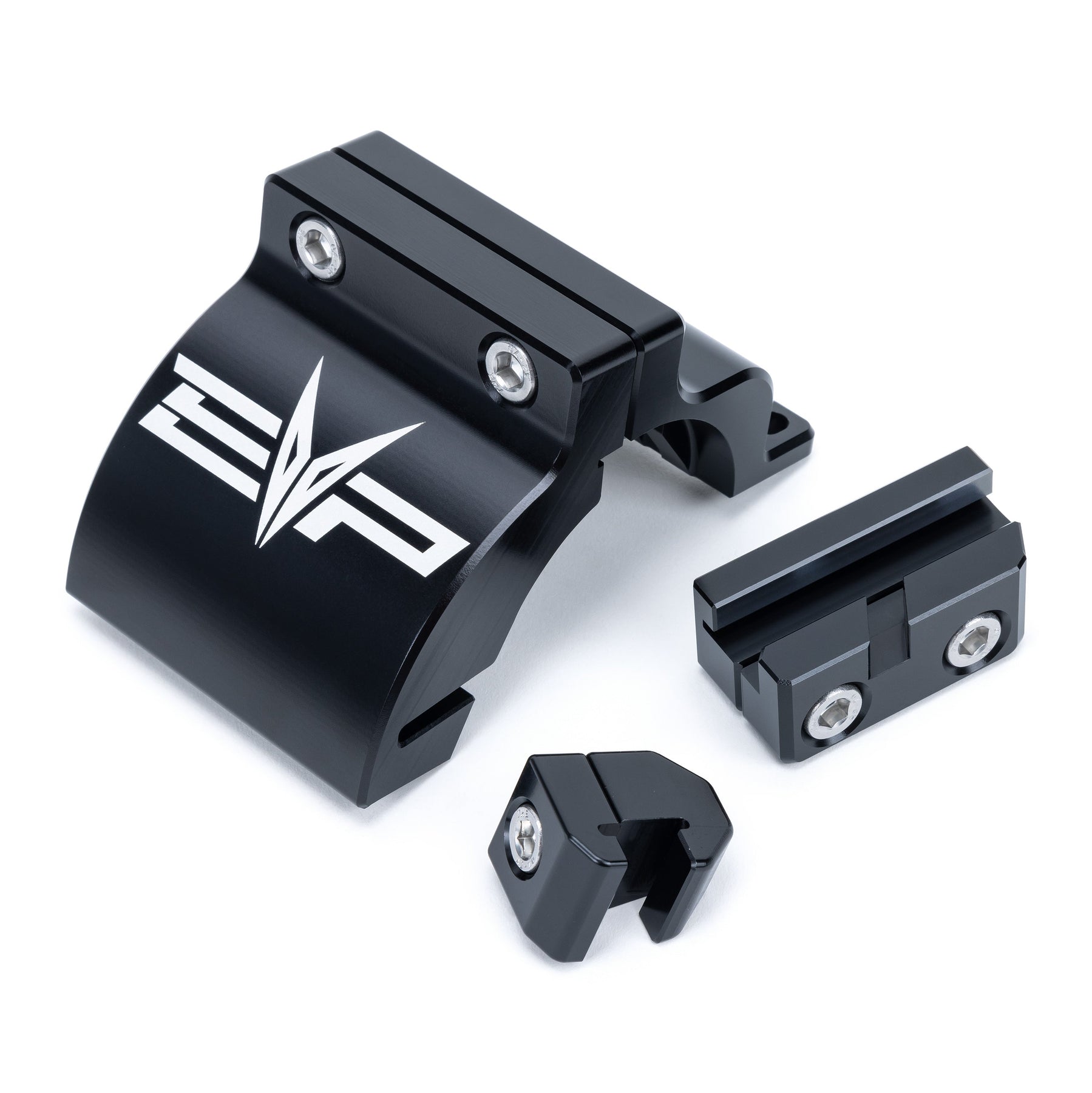

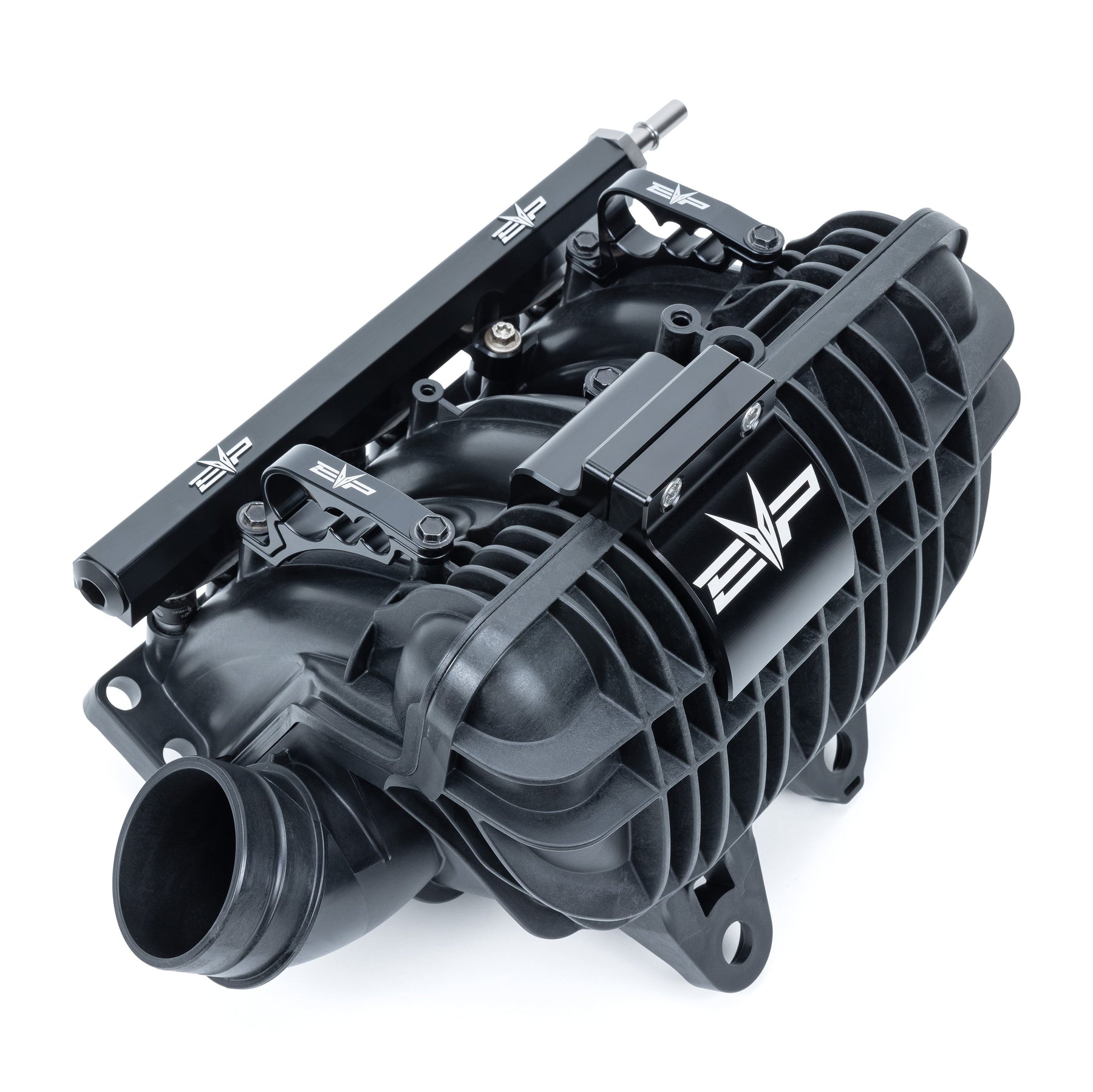

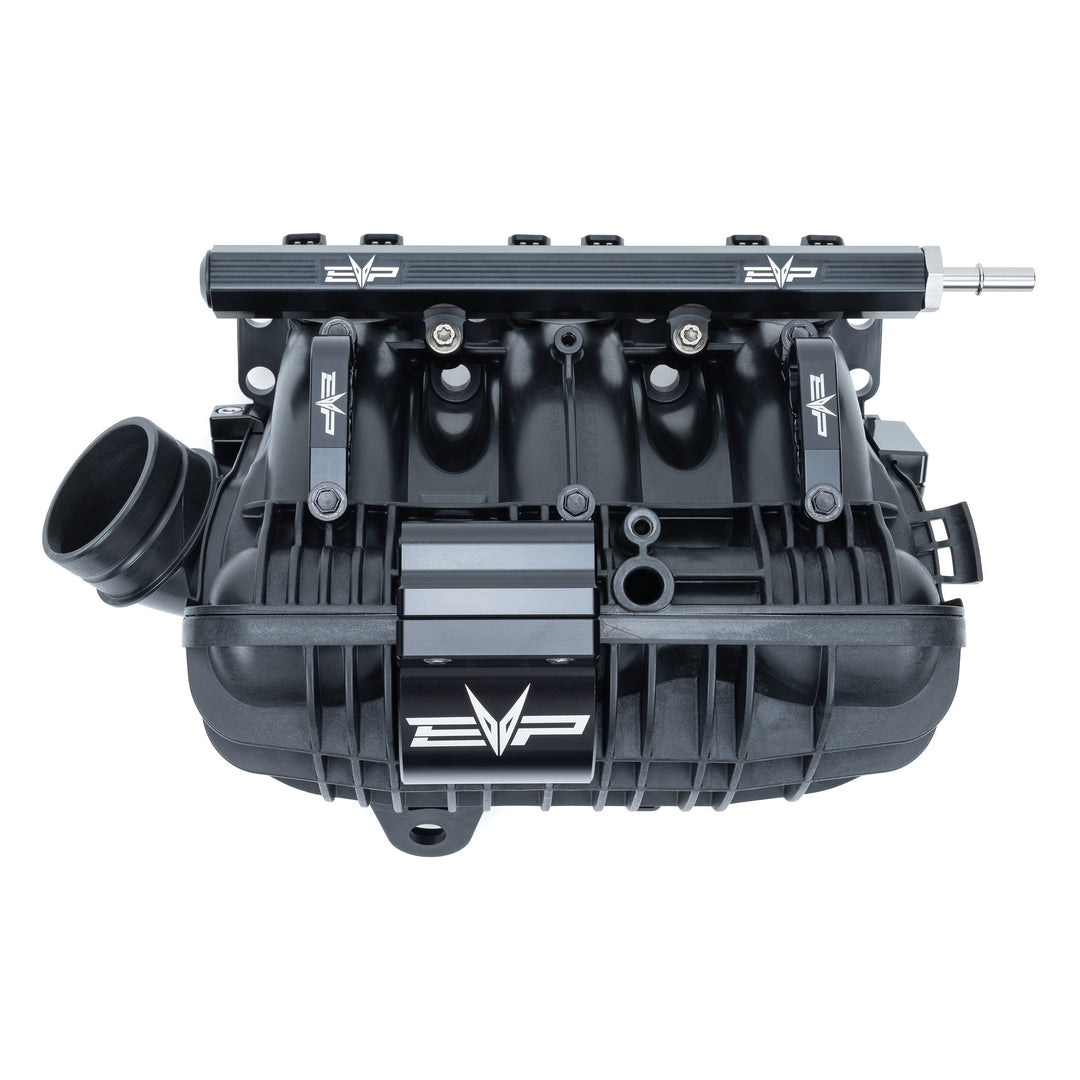

The plenum brace kit adds a top brace and two side braces to prevent seam splits on the sonic-welded plastic plenum. Braces install without removing the plenum. A billet hose holder replaces the stock plastic cover to secure hoses and improve access to the top of the engine.
FEATURES:
- Billet aluminum components; anodized black
- Aluminum ORB SAE fittings
KIT INCLUDES:
- BILLET FUEL RAIL (choose between OEM or -8AN Fitting)
- PLENUM HOSE SEPARATORS (2)
- PLENUM CLAMPS (3 with Socket Head Screws included)
FITMENT
2024 Can-Am Maverick R
INSTRUCTIONS
Maverick R Plenum Bulletproofing Kit Instructions
Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.
